Keder Roof System and Keder Roof XL System

  • Layher Keder Roof System
    Layher Keder Roof System
  • Keder Roof System

    blue-triangle-sw

    • Robust weather protection
    • Easier and safer to assemble
    • Versatile and cost effective
    • Extra wide spans

  • Robust weather protection

    Layher’s Keder (PVC roof sheet) Roof Systems are a robust temporary weather protection solution ideally suited to multiple applications in the residential, commercial, industrial, infrastructure and event sectors.

    The roof system provides a quick, economical and easy to assemble solution to meet a diverse range of weather protection applications. The system is also modern and visually appealing, making it a great option for applications where site aesthetics are an important factor.


  • Keder Roof System is capable of span in excess of 20m
    Keder Roof System is capable of span in excess of 20m

  • Easier and safer to assemble

    The Keder Roof System’s lightweight aluminium construction makes it easy to handle and significantly reduces assembly and disassembly times when compared to traditional protection methods. It also offers a safer means of installing roof sheets by removing the need to work on the top of the structure.

    The key to the system’s rapid assembly is its claw connection, truss stiffeners and PVC roof sheet installation (pulled through a track). Bracing typically is installed on every fifth truss, greatly increasing assembly and disassembly efficiency.

    Reassuringly the system also offers three safer assembly methodologies, helping to minimise the risk of fall from heights.

  • Keder Roof assembly using crane
  • Keder Roof built without a crane

  • Helicopter hangar (temporary maintenance shelter) constructed using Layher Keder Roof system
    Helicopter hangar (temporary maintenance shelter) constructed using Layher Keder Roof system

  • Versatile and cost effective

    Because it is fully compatible with both the Allround and SpeedyScaf Scaffolding Systems, the Layher Keder Roof system is one of the most versatile and configurable prefabricated weather protection systems available. The flexibility of the system enables you to create protective roof structures, or combine it with sheet wall components to expand the system into a fully enclosed hall.

    Despite its capabilities, the Keder Roof System remains very cost effective, and the system’s modular design, with just a small number of truss and bracing components, offers significant savings in build time and labour costs.


  • Temporary roofing solutions from Layher
    Temporary roofing solutions from Layher

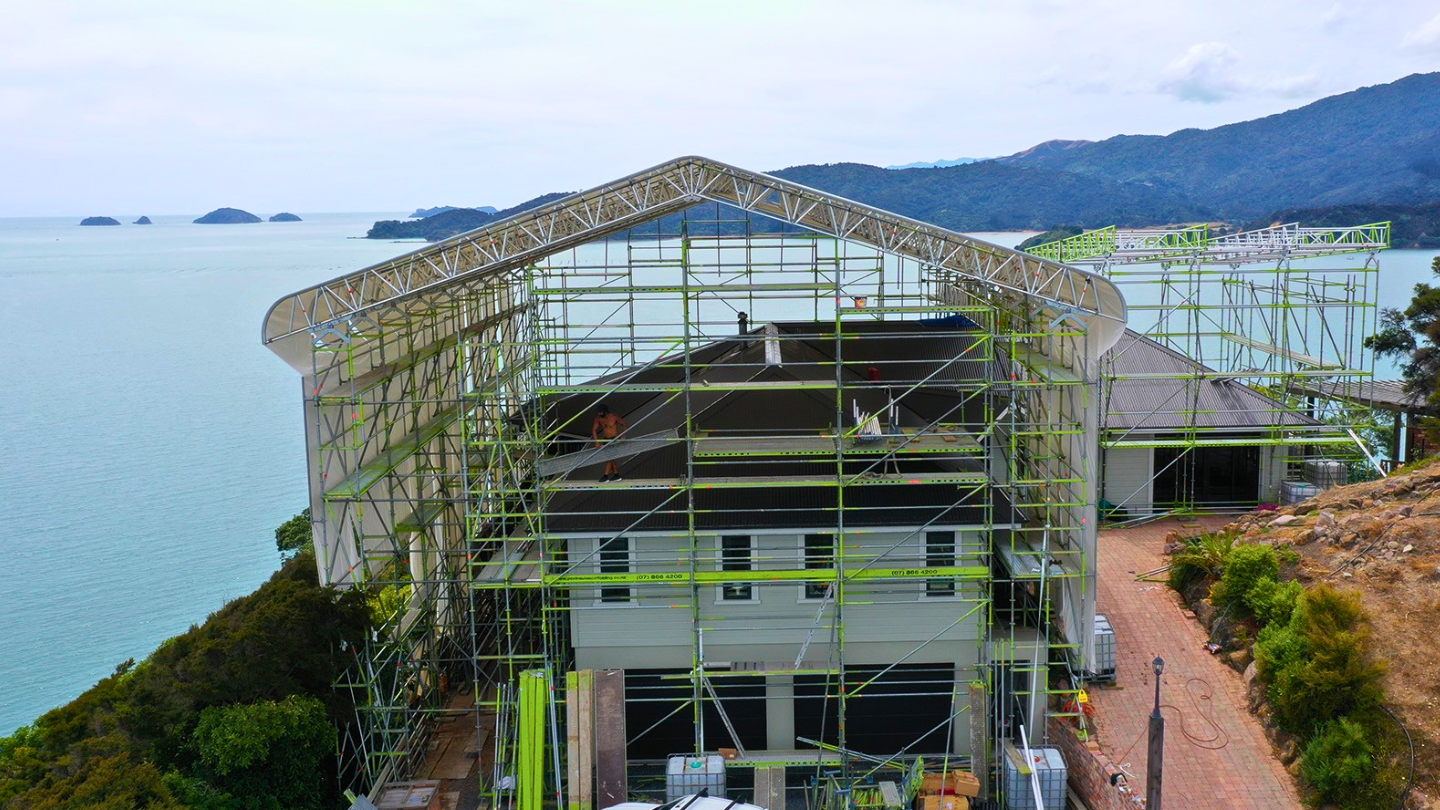

  • Extra wide spans using Keder Roof XL

    The latest addition to the Layher roofing range – the Keder Roof XL – enables you to create even greater spans. The XL shares many qualities with its predecessor, retaining all the Keder Roof System’s installation, weight and versatility advantages.

    The Keder Roof XL enables you to configure the system for light, standard or heavy-duty bracing applications. Depending on a static system and load it is possible to create unsupported roof spans over 26m. It’s even possible to create arched or domed installations, making it an incredibly versatile and capable addition to the Layher roof system line up.


  • Keder Roof System creates an ideal temporary concert stage roof solution
  • Layher Roof system provides environmental protection
    Layher Roof system provides environmental protection during construction, renovation and restoration
  • Arched and domed installations are possible
    Arched and domed installations are possible
