Allround Bridging System

  • Layher Allround Bridging System
    Layher Allround Bridging System
  • Allround Bridging System

    blue-triangle-sw

    • Public access and heavy duty truss solutions
    • Extreme capacity and flexibility
    • Wider spans
    • Ingenious design

  • Public access and heavy duty truss solutions

    Layher’s Allround Bridging System provides a versatile public access and heavy duty support solution.

    Using only a few additional components you can significantly increase the load-bearing capacity and adaptability of your scaffolding assets.


  • Extreme capacity and flexibility

    The Allround Bridging System offers an extremely high capacity support solution with a range of high-strength configuration options. It’s possible to connect suspended scaffolding structures, create bridge spans up to 30m long, and even join several bridge spans in parallel to increase in the load-bearing capacity even further.

    This makes the system ideal for high-span and heavy-load applications, such as pedestrian footbridges and girder support systems for building façade scaffolding or temporary roofing.


  • Allround Bridging System provided temporary bridge over river
    Allround Bridging System provided temporary bridge over river

  • Wider spans

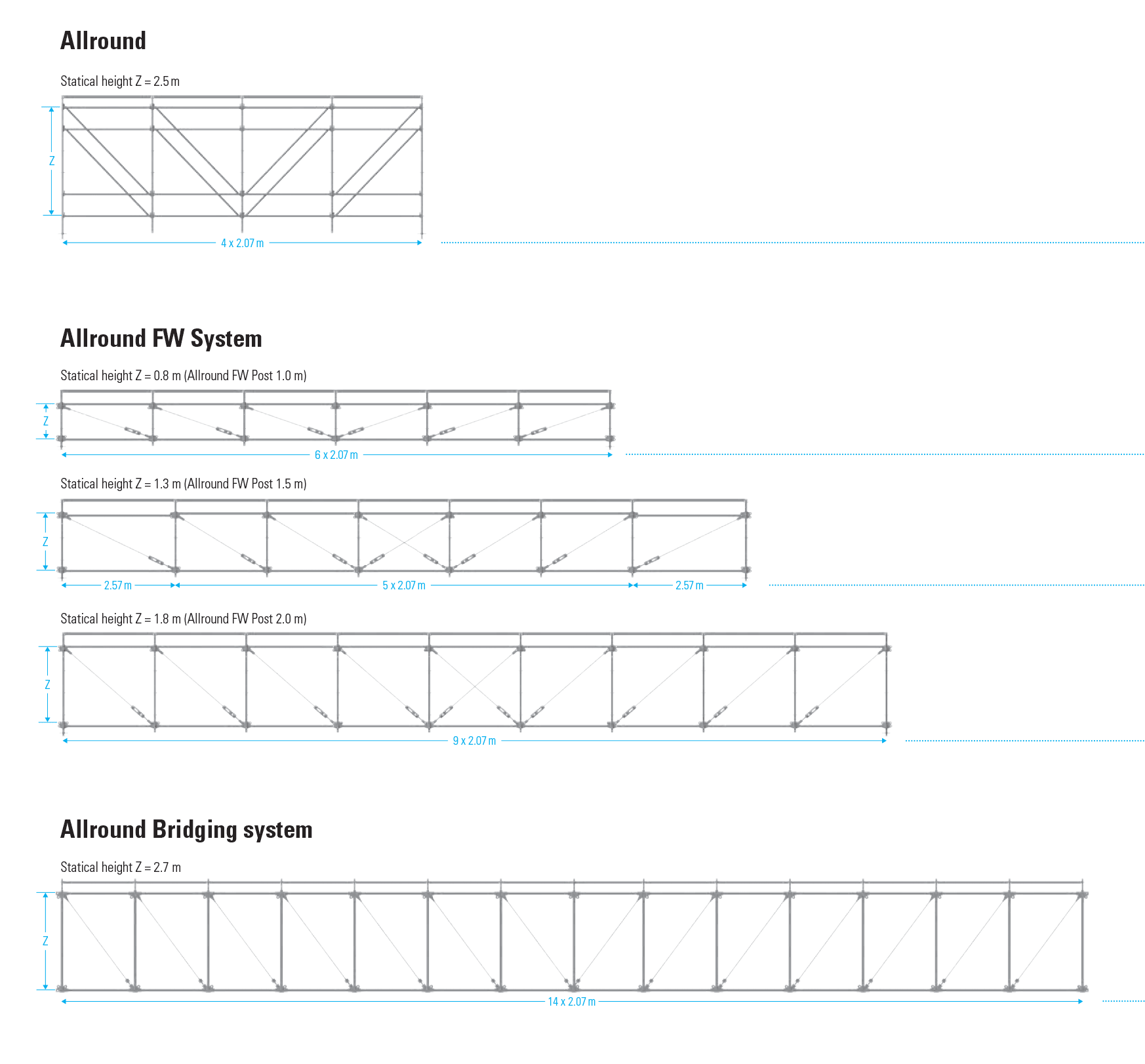

    Layher offers users ‘More Possibilities’ for bridging applications with its extensive product range. The Allround Bridging System was designed to achieve extreme spans and loads whilst still integrating with the Layher Allround modular system component range. The diagram below provides a comparison based on a Uniformly Distributed Load (UDL) of 2kNm².

    Layher bridging span comparison
    Layher bridging span comparison

  • Allround Bridging System

  • Allround Bridging provides safe pedestrian access over busy motorway
    Allround Bridging provides safe pedestrian access over busy motorway

  • Ingenious design

    The Allround Bridging System’s strength and rigidity enables you to add it directly to an existing scaffolding, or pre-assemble it on the ground as a stand-alone structure, before lifting it into position using a crane or hoist.

    The system uses the same component dimensions and easy-to-use wedge head connection mechanism from the Allround Scaffolding System, so interconnecting the two systems is a quick and intuitive process.

    When used as a support beam for a scaffold, podium or roof structure, the Allround Bridging System connects to the structure above using conventional Allround Scaffolding System standards integrated into its top components.

    The components of the Allround Bridging System themselves use a modular lattice beam design, which connects using a very high capacity bolt mechanism. Like the Allround Scaffolding System, assembly and dismantling is quick and easy.


  • Allround Bridging System components – vertical post, chord and diagonal rod

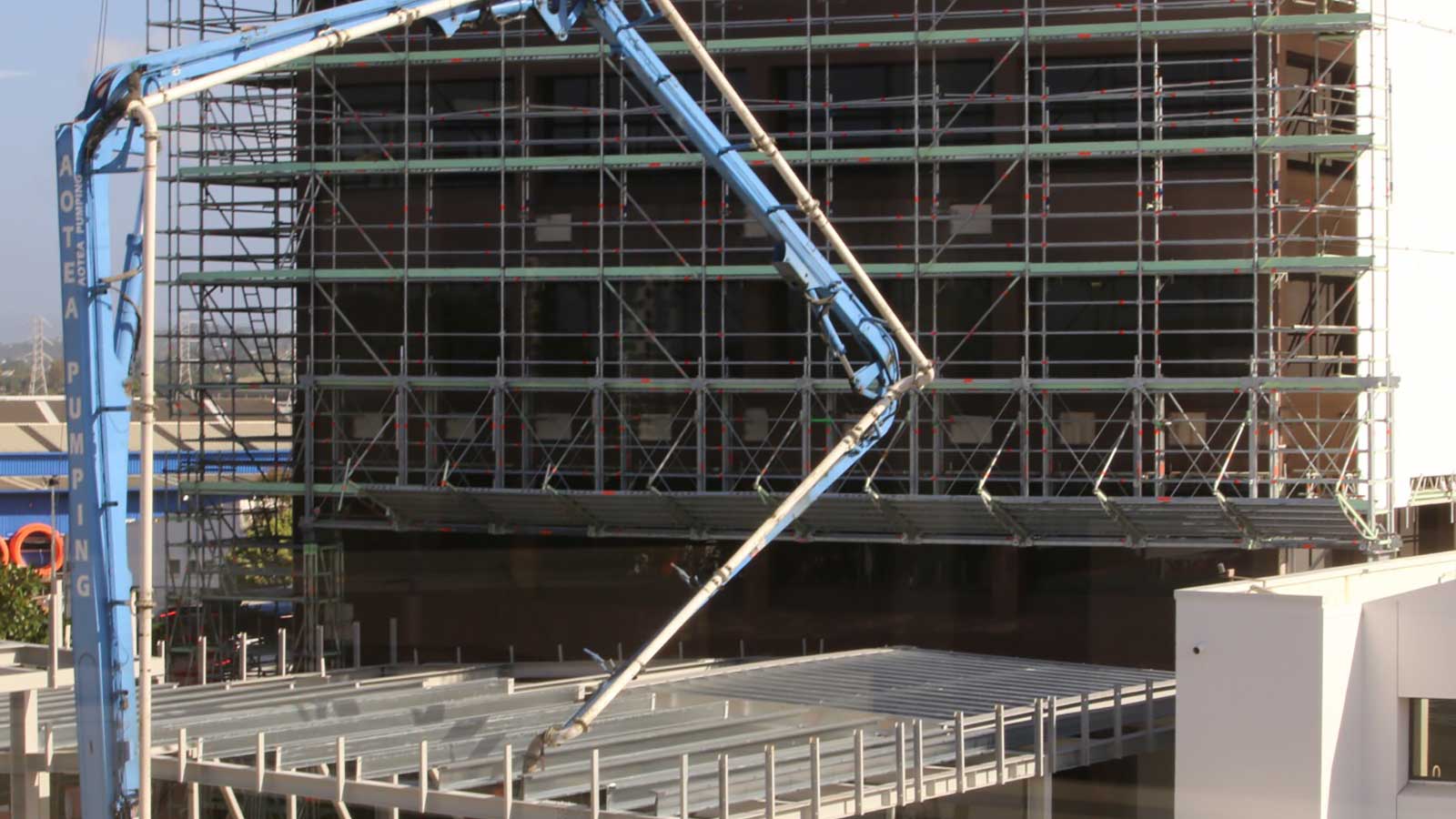

  • Construction support beam  using Allround Bridging System
    Construction support beam using Allround Bridging System

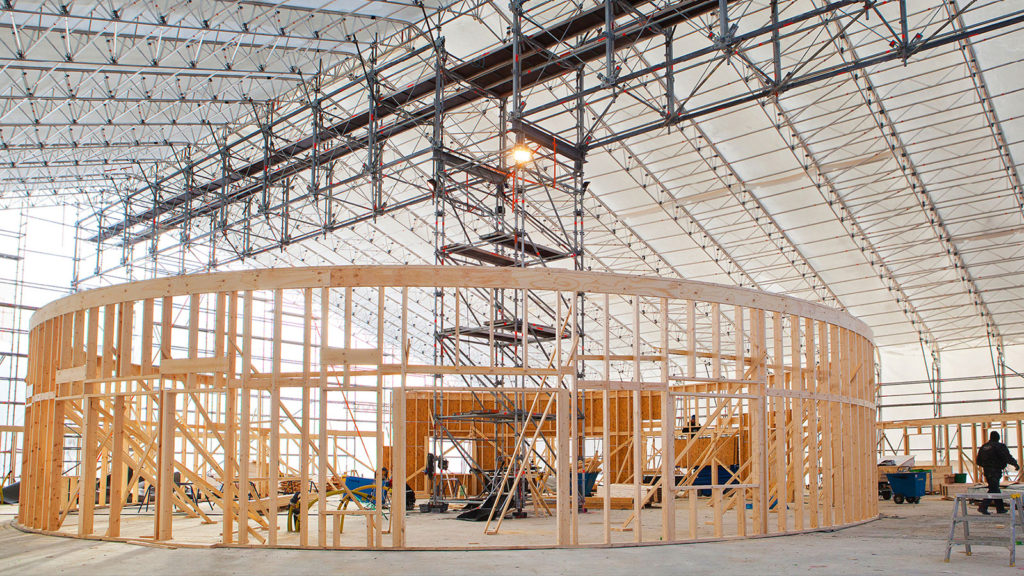

  • Allround Bridging System supporting Keder Roof XL structure
    Allround Bridging System supporting Keder Roof XL structure
  • Temporary gantry in warehouse using Allround Bridging System
    Temporary gantry in warehouse using Allround Bridging System
  • Public access pedestrian footbridge over railway lines – using Layher Allround Bridging System
    Public access pedestrian footbridge over railway lines – using Layher Allround Bridging System
