Gap solutions

  • Steel lapping plank and gap cover
    Steel lapping plank and gap cover
  • Gap solutions

    Layher supplies a range of gap solutions to meet New Zealand safety regulations.

    blue-triangle-sw

    • Lightweight steel construction for easy handling
    • Lapping planks for spans up to 2.3m
    • Gap covers for spans up to 20cm
    • Securing pin or screw options

  • Lapping planks

    Lapping planks are used to bridge gaps between two scaffolding bays or decks. Fully compatible with the Allround and SpeedyScaf Scaffolding Systems, they use a lightweight steel construction that is easy to position and install.

    Lapping planks accommodate spans up to 2.3m and are available in 0.2m and 0.3m wide versions. Lapping planks have a thickness of 45mm.

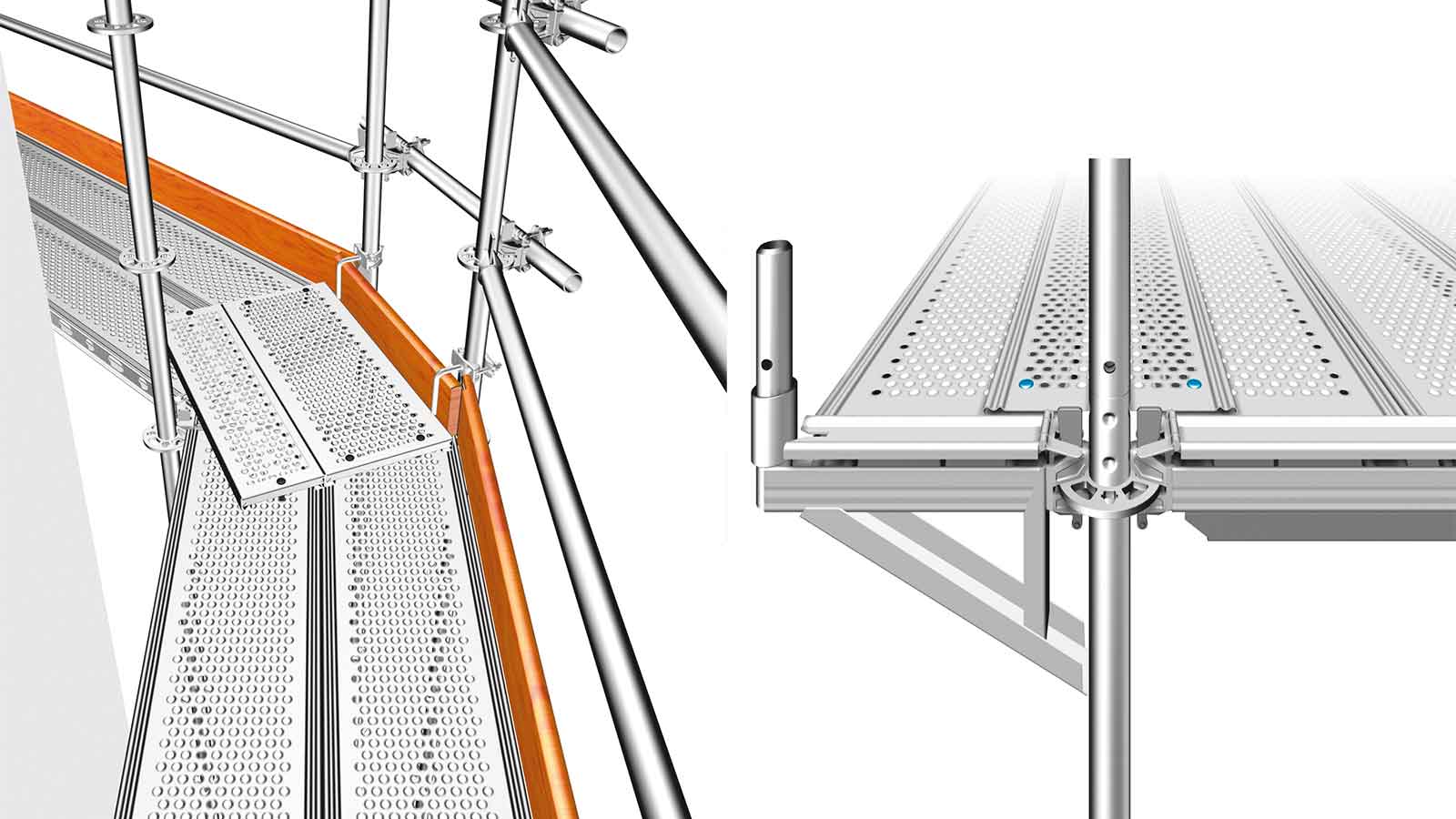

  • Lapping plank on scaffold
    Lapping plank on scaffold

  • Steel lapping plank

  • Gap covers

    Layher steel gap covers can be used between two scaffolding bays or decks on Allround and SpeedyScaf Scaffolding. Designed for use on gap widths of up to 20 cm, steel gap covers are lightweight, cost effective and have a long life.

    To ensure the plank doesn’t present a tripping hazard for personnel, the plank is designed with a thickness of 10 mm.

  • Gap cover on Allround scaffolding
    Gap cover on Allround scaffolding

  • Gap covers
    Gap covers, lengths up to 3.07m

  • Securing screws and locking pins

    Lapping planks and gap covers can be simply secured using securing screws or plastic locking pins. Blue securing screws for gap covers and red securing screws for lapping planks. Plastic locking pins are a quick alternative designed for one use only.

  • Securing screw short, blue 40mm
    Securing screw short, blue 40mm
  • Securing screw long, red 80mm
    Securing screw long, red 80mm
  • Locking pin 80mm
    Locking pin (one use), red 80mm
  • Securing screws
  • Gap cover with short securing screw
    Gap cover with short securing screw

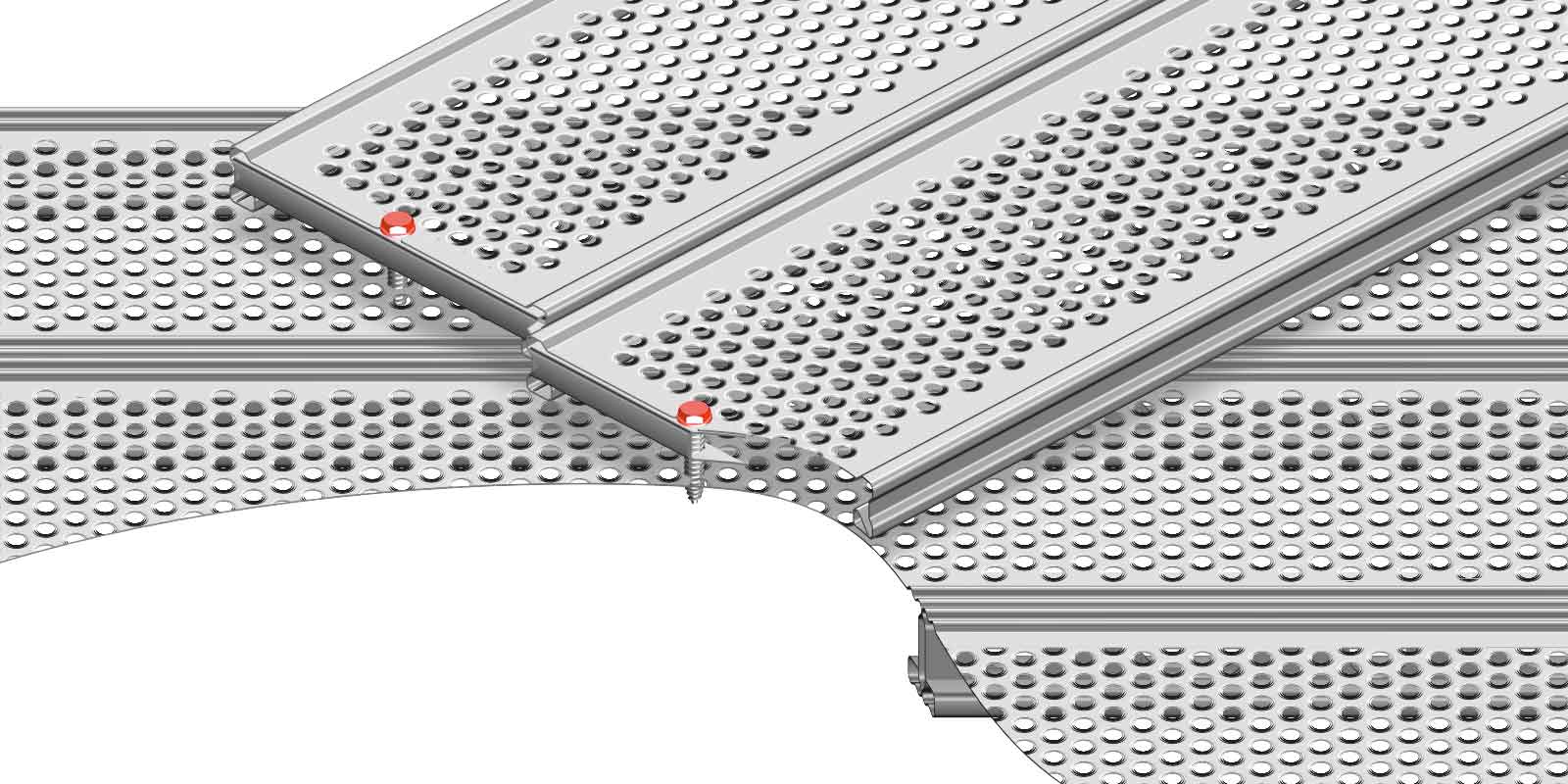

    Lapping plank with long securing screw
    Lapping plank with long securing screw
